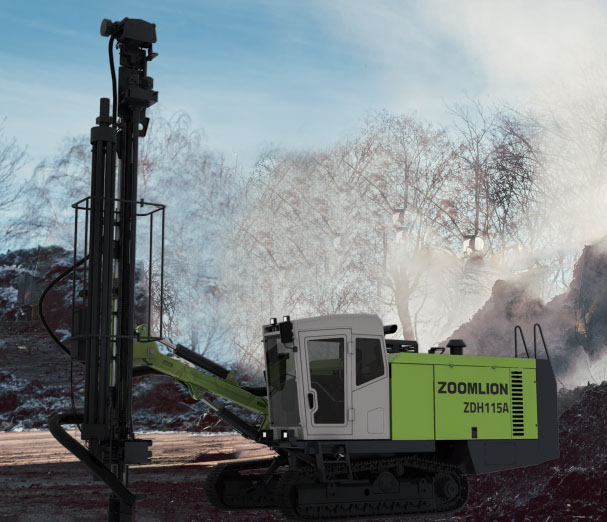

Upgraded integrated DTH drill, stable drilling performance, adapts to complex open-pit rock-drilling conditions.
| Model | ZOOMLION ZDH115A |
| Total Machine Weight | / |
| Hole Diameter Range | φ90-140mm |
| Rod Storage Capacity | 6+1pcs |
| Drill Pipe Specification | φ76×4000mm |
| Engine Model | YC6L310-T300 |
| Rated Power | 228kW |
| Maximum Travel Speed | 3km/h |
| Gradeability | 30° |
| Crawler Frame Swing Angle | / |
| Ground Clearance | >=400mm |
| Max Working Torque | 3000N.m |
| Rotation Speed | / |
| Air Displacement | / |
| Max Working Pressure | 17bar |
| Max Pull Force | 31kN |
| Feed Stroke | 4500mm |
| Feed Compensation Length | 1200mm |
